Connectives

AND (conjunction): A $\cdot$ B ; A $\land$ B
OR (disjunction): A + B ; A $\lor$ B
NOT (negation): A’ ; ~A ; $\overset{ˉ}{A}$

Operator Precedence

From highest to lowest: Not (‘), And ( $\cdot$ ), Or (+)

A $\cdot$ B’ + C = (A $\cdot$ (B’)) + C

Laws

Identity
- A + 0 = A
- A $\cdot$ 1 = A
Inverse/complement
- A + A’ = 1
- A $\cdot$ A’ = 0
Commutative
- A + B = B + A
- A $\cdot$ B = B $\cdot$ A
Associative
- A + (B + C) = (A + C) + C
- A $\cdot$ (B $\cdot$ C) = (A $\cdot$ B) $\cdot$ C
Distributive
- A $\cdot$ (B + C) = (A $\cdot$ B) + (A $\cdot$ C)
- A + (B $\cdot$ C) = (A + B) $\cdot$ (A + C)

Theorems

Idempotency
- X + X = X
- X $\cdot$ X = X
One element / zero element
- X + 1 = 1
- X $\cdot$ 0 = 0
Involution
- (X’)’ = X
Absorption 1
- X + X $\cdot$ Y = X
- X $\cdot$ (X + Y) = X
Absorption 2
- X + X’ $\cdot$ Y = X + Y
- X $\cdot$ (X’ + Y) = X $\cdot$ Y
DeMorgans’ (can be generalised to >2 variables)
- (X+Y)’ = X’ $\cdot$ Y’
- (X $\cdot$ Y)’ = X’ + Y’
Consensus
- X $\cdot$ Y + X’ $\cdot$ Z + Y $\cdot$ Z = X $\cdot$ Y + X’ $\cdot$ Z
- (X + Y) $\cdot$ (X’ + Z) $\cdot$ (Y + Z) = (X + Y) $\cdot$ (X’ + Z)

Duality

If AND/OR operators, and identity elements 0/1 in a boolean equation are interchanged, the equation remains valid
- if (x + y + z)’ = x’ $\cdot$ y’ $\cdot$ z’ is valid, then its dual, (x $\cdot$ y $\cdot$ z)’ = x’ + y’ + z’ is also valid
- if x + 1 = 1 is valid, then its dual x $\cdot$ 0 = 0 is also valid

Boolean Functions

A function that takes in boolean variables, and outputs a boolean value
Complement functions: the complement F’ of a boolean function F, is obtained by swapping 1 and 0 in the function’s output values
- e.g. F = x $\cdot$ y $\cdot$ z’ , F’ = x’ + y’ + z (by DeMorgan’s and Involution)

Forms of boolean expressions

Literal
- A variable on its own, or in its complemented form
- e.g. x , x’
Product term
- A single literal, or several literals ANDed together
- e.g. x , x $\cdot$ y $\cdot$ z’
Sum term
- A single literal, or several literals ORed together
- e.g. x , x + y + z’
Sum of Products (SOP) expression
- A product term, or several product terms ORed together
- e.g. x , x + y $\cdot$ z , x $\cdot$ y’ + x $\cdot$ z
Product of Sum (POS) expression
- A sum term, or several sum terms ANDed together
- e.g. x , x $\cdot$ (y + z’) , (x + y’) $\cdot$ (x + z)
Note: every boolean expression can be expressed in SOP or POS form

Minterm & Maxterm

Minterm of n variables is a special product term that contains n literals from all the variables
- e.g. on 2 variables x and y, the minterms are x’ $\cdot$ y’ , x’ $\cdot$ y , x $\cdot$ y’ and x $\cdot$ y
Maxterm of n variables is a special sum term that contains n literals from all the variables
- e.g. on 2 variables x and y, the maxterms are x + y , x + y’ , y’ + x and x’ + y’
In general, with n variables, we have up to $2^{n}$ minterms and maxterms
Each minterm is the complement of its maxterm, each maxterm is the complement of its minterm (e.g. m2’ = M2)

x	y	minterm term	notation	maxterm term	notation
0	0	x’ $\cdot$ y’	m0	x + y	M0
0	1	x’ $\cdot$ y	m1	x + y’	M1
1	0	x $\cdot$ y’	m2	x’ + y	M2
1	1	x $\cdot$ y	m3	x’ + y’	M3

Canonical/normal form

A unique way of representing a boolean expression (each boolean expression only has one canonical form of each type)
Types of canonical forms
- Sum-of-minterms (Canonical sum-of-products)
- Product-of-maxterms (Canonical product-of-sums)
Sum of minterms
- Obtained by gathering the minterms of the function where the output is 1
- When x is 0, minterm will contain x’, when x is 1, minterm will contain x
- Can be expressed as a sum of ranges e.g. $\sum$ m(1, 3-5)
Product of maxterms
- Obtained by gathering the maxterms of the function where the output is 0
- When x is 0, maxterm will contain x, when x is 1, maxterm will contain x’
- Can be expressed as a product of ranges e.g. $Π$ M(0, 2, 6-7)
Sum of minterms can be convert to product of maxterms and vice versa
- Convert by including the terms that were not included
- e.g. $\sum$ m(1, 3-5) → $Π$ M(0, 2, 6-7)
- Can be proved by doing DeMorgan’s on F’
Sum of minterms/product of maxterms of complement of F (F’) is found by including the terms that were not included
- e.g. F = $\sum$ m(1, 3-5) → F’ = $\sum$ m(0, 2, 6-7)

x	y	F1	F2
0	0	0	0
0	1	0	1
1	0	1	0
1	1	0	1

Sum of minterms
- F1 = x $\cdot$ y’ = m2
- F2 = x’ $\cdot$ y + x $\cdot$ y = $\sum$ m(1,3)
Product of maxterms
- F1 = (x + y) $\cdot$ (x + y’) $\cdot$ (x’ + y’) = $Π$ M(0-1, 3)
- F2 = (x + y) $\cdot$ (x’ + y) = $Π$ M(0, 2)

Gray Code

also called reflected binary code
Unweighted: each position does not mean a different thing (unlike binary, etc.)
Only a single bit change from one code value to the next (including from the last value back to the first value)
Not restricted to decimal digits: n bits → $2^{n}$ values
Good for error detection
Named after Frank Gray
e.g. 4-bit standard gray code, generated by:
- First 2 values are always same as binary: 0000, 0001
- Next 2 values are generated by reflecting the first 2 values (0001, 0000), then changing the second bit to 1 (0011, 0010)
- Repeat by reflecting the first 4 values, and changing the third bit to 1 etc.

Simplification

Simplification → fewer logic gates → cheaper, uses less power, sometimes faster
- Aims to minimise no. of literals and no. of terms
Techniques
- Algebraic
- Karnaugh maps (k-maps) (max. 6 variables)

Algebraic Simplification

Minimise no. of literals
Use the laws/theorems to simplify the expression

K-maps

Systematic method to obtain sum of products
An abstract form of a Venn diagram, organised as a matrix of squares
- Each square represents a minterm
- Two adjacent squares represent minterms that differ by exactly one literal (axes with more than 1)
- Axes with more than 1 variables have to follow a grey code sequence
K-map sizes
- 2 variable: 2 by 2 square, with 1 variable on each axis (each cell has 2 neighbours)
- 3 variable: 2 by 4, with 2 variables on one axis, 1 variable on the other
  - Each cell has 3 neighbours, so the long axis wraps around (if is horizontal rectangle, the leftmost cell wraps to the rightmost cell)
- 4 variable: 4 by 4, with 2 variables on each axis
  - Each cell has 4 neighbours, so both axes wrap around

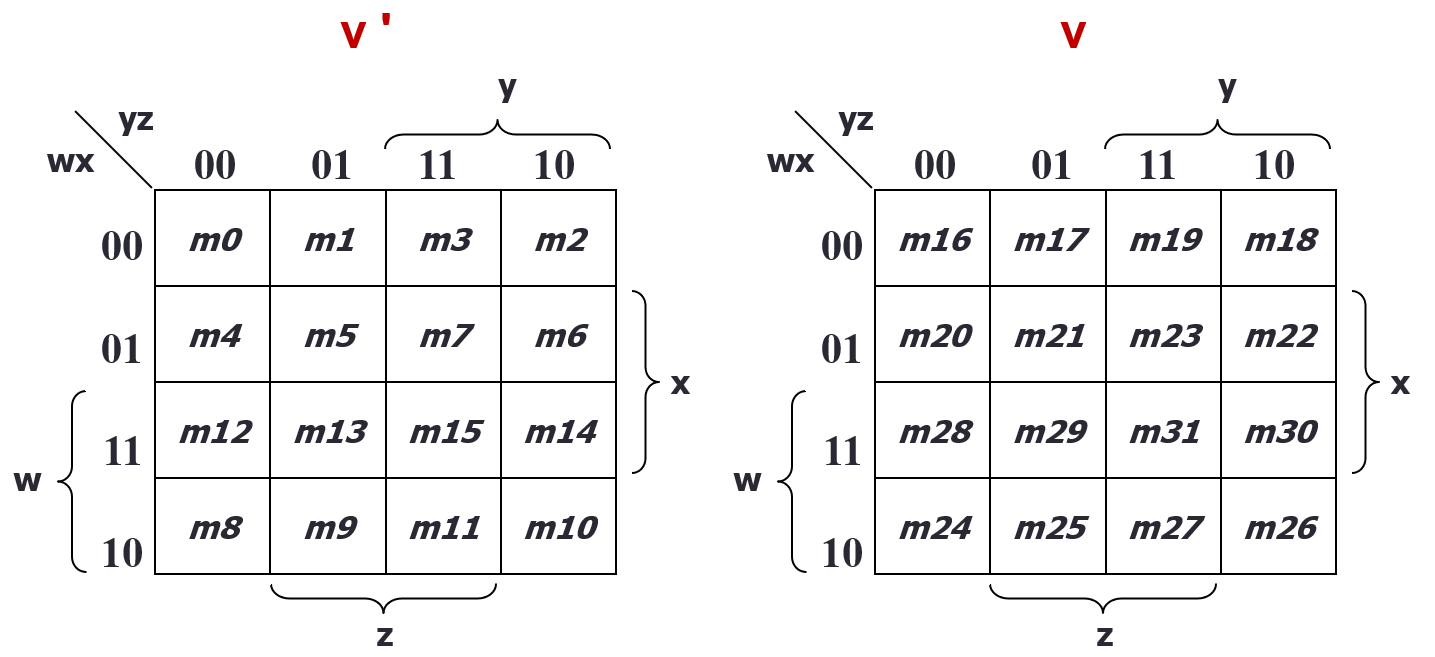

- 5 variable: two 4 by 4s, with two variables on each axis, and each of the 4 by 4s representing the last variable

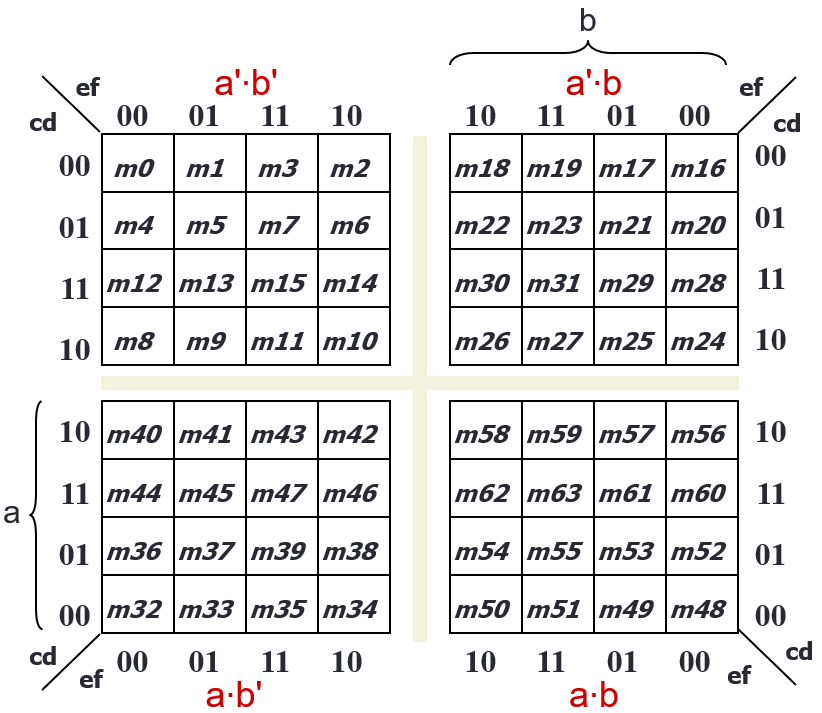

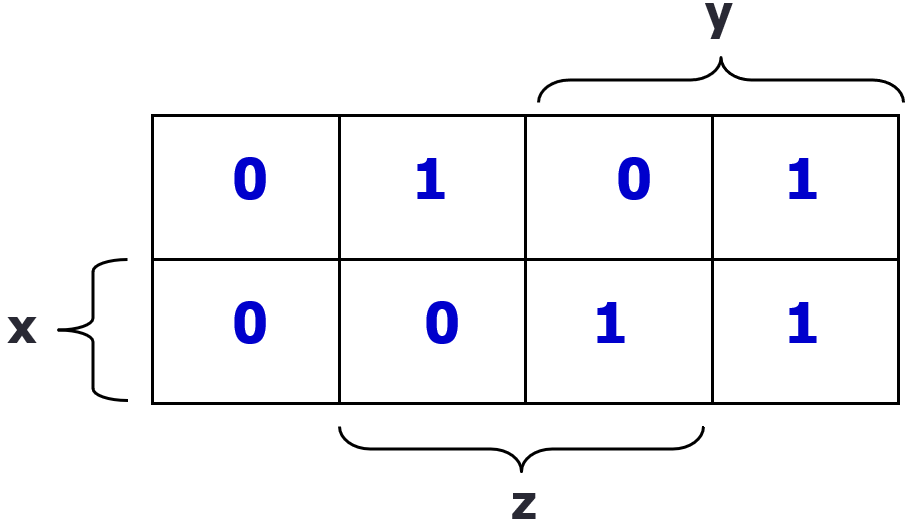

e.g. A(x, y, z) = x $\cdot$ y + y $\cdot$ z’ + x’ $\cdot$ y’ $\cdot$ z
- take the y $\cdot$ z’ term, this means the cells that are “inside” the y region, and “outside” the z region are 1s
- after doing the above for all product terms, the remaining cells will be filled with zeros
How to use?
- Based on unifying theorem (complement law): A + A’ = 1
- Each cell corresponds to a minterm where the function output is 1
- Each valid grouping of adjacent cells containing 1 corresponds to a simpler product term of the function
  - Group must have size in powers of 2: 1, 2, 4, 8…
  - Grouping 2 adjacent cells eliminates 1 variable from the product term, grouping $2^{n}$ cells eliminates n variables
- Goal is to group as many cells as possible (maximise group size, or minimise number of groups)
- To find simplified POS expression, draw the k-map of F’, then find the SOP of F’. Then, find POS of F by negating both sides of the equation, and using DeMorgan’s
  - F’ = SOP
  - F = (SOP)’ = POS
- Don’t care conditions (where outputs can be either 1 or 0), denoted by X or d, usually when a certain combination of inputs are invalid (or will never occur)
  - e.g. when the input is a half adder (the outputs C and S will never both be 1 at the same time)
  - X can be chosen to be either 1 or 0, whichever will result in a simpler expression, check each X one by one to see if group size can be increased
  - $\sum$ d(…) is used to denote the set of don’t care minterms

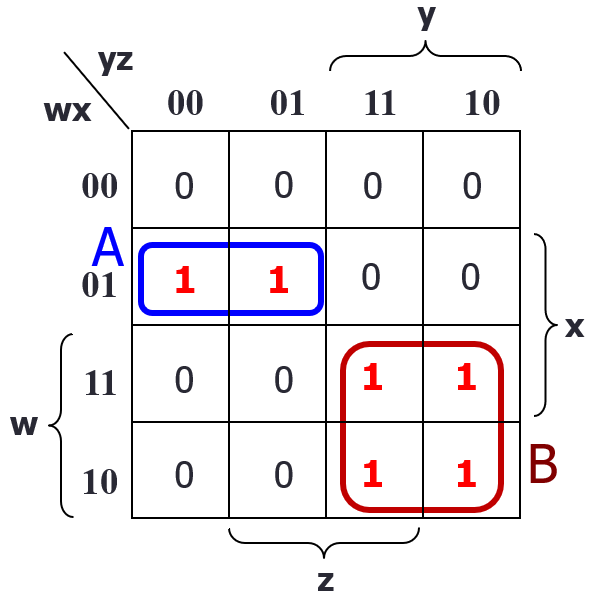

e.g. F(w, x, y, z) = w’ $\cdot$ x $\cdot$ y’ $\cdot$ z’ + w’ $\cdot$ x $\cdot$ y’ $\cdot$ z + w $\cdot$ x’ $\cdot$ y $\cdot$ z’ + w $\cdot$ x’ $\cdot$ y $\cdot$ z + w $\cdot$ x $\cdot$ y $\cdot$ z’ + w $\cdot$ x $\cdot$ y $\cdot$ z = $\sum$ m(4, 5, 10, 11, 14, 15)
- Write 1 in the corresponding minterm cells, or fill it in based on the sum of products (see the 3 variable k-map example above)
- Group the cells as much as possible
  - Prime implicant (PI): made by combining the maximum possible adjacent cells (always do this, even if they overlap)
    - Each PI should have at least one 1, cannot be all Xs
  - Essential prime implicant (EPI): a PI that includes at least one minterm that is not covered by any other PI (i.e. do not form a group of cells of which all have already been grouped)
    - To be considered covered by another PI, it is not necessary to be the same other PI
    - Only count minterms that are 1, not X
  - All groups have to be EPIs, this can be done by identifying all PIs and removing all non-essential PIs. If there are still cells not covered, select the minimum number of remaining PIs to cover the cells
- Simplify each group (remember that groups of $2^{n}$ cells will remove n terms)
  - A = w’ $\cdot$ x $\cdot$ y’
  - B = w $\cdot$ y
- Combine simplified groups
  - F(w, x, y, z) = w’ $\cdot$ x $\cdot$ y’ + w $\cdot$ y
